Restaurant Sound System Featuring 16 C5 4" 70 Volt Ceiling Speakers, RZMA120BT 120W Multi Zone Bluetooth Mixer Amplifier & PTT1 Paging Microphone

$ 3,605.99
$ 3,032.99

Restaurant Paging Sound System

Multi Zone Music & Paging Sound System for Restaurant Applications

This restaurant sound system features sixteen sleek 4" in-ceiling speakers paired with a powerful 120-watt, four-zone Bluetooth mixer amplifier, delivering premium sound and seamless audio control. A desktop push-to-talk gooseneck microphone allows for clear paging with zone selection, making communication effortless. Perfect for creating the ideal ambiance, this system lets you stream background music in up to four distinct areas from any Bluetooth-enabled device. Whether for a bistro, bar, brewery, cantina, or late-night dining venue, this all-in-one solution ensures high-quality sound and paging for an enhanced guest experience.

PROVIDE THE PERFECT
DINING ATMOSPHERE

High-Quality Background Music
and Paging Solution

QUICK AND EASY TO INSTALL

The threaded screw-on Easy-Mounting ring ensures effortless installation in drop tile ceilings, and the tile bridges provide additional support.

COMPACT AND LIGHTWEIGHT

The C5 provides the smallest possible footprint while maintaining high-quality sound.

STYLISH DESIGN

The C5 ceiling speaker seamlessly blends into any ceiling with a stylish design that won't distract from the ceiling design.

BLUETOOTH AMPLIFIER

The easy to operate RZMA120BT is equipped with built-in Bluetooth, MP3, FM tuner, and recording capabilities. The zone-selectable inputs allow you to assign audio to any output.

POWERFUL AMPLIFIER

The RZMA120BT is equipped with 4 ohms, 70 volt and 100 volt terminals and has 4 separate channels at 120W each.

PAGING & ANNOUNCEMENTS

The PTT1 push-to-talk tabletop microphone is ideal for paging, announcements, and general public address applications.

RESTAURANT SOUND SYSTEM WITH BLUETOOTH AND PAGING

This restaurant speaker system includes sixteen sleek Pure Resonance Audio C5 in-ceiling speakers paired with the powerful RZMA120BT 120W Bluetooth multi-zone mixer amplifier and a PTT1 desktop push-to-talk gooseneck microphone for clear announcements. The compact and lightweight C5 4" micro ceiling speakers deliver high-quality sound with excellent dispersion for both vocals and music while seamlessly blending into ceilings. Designed to provide flexible audio distribution, the RZMA120BT allows you to stream background music and manage audio across up to four zones in your restaurant or business, creating the perfect ambiance for any setting.

C5 Micro 4" 70 Volt Ceiling Speakers

The C5 is a 4" micro 70-volt ceiling mount speaker in a compact, lightweight, and recessed design that seamlessly blends into the ceiling. The C5 achieves a smaller footprint while maintaining robust, high-quality sound ideal for background and foreground music, paging, or sound masking in commercial environments. The intelligently engineered enclosure contains a full-range 4" driver that delivers 90Hz - 20kHz frequency response and 91dB sensitivity. Featuring a built-in 70V/100V transformer with an 8-ohm bypass, this 70V ceiling speaker is perfect for restaurants, hospitality venues, reception areas, waiting rooms, and a wide range of business applications. The C5 is quick and easy to install with the included screw-on Easy-Mounting ring.

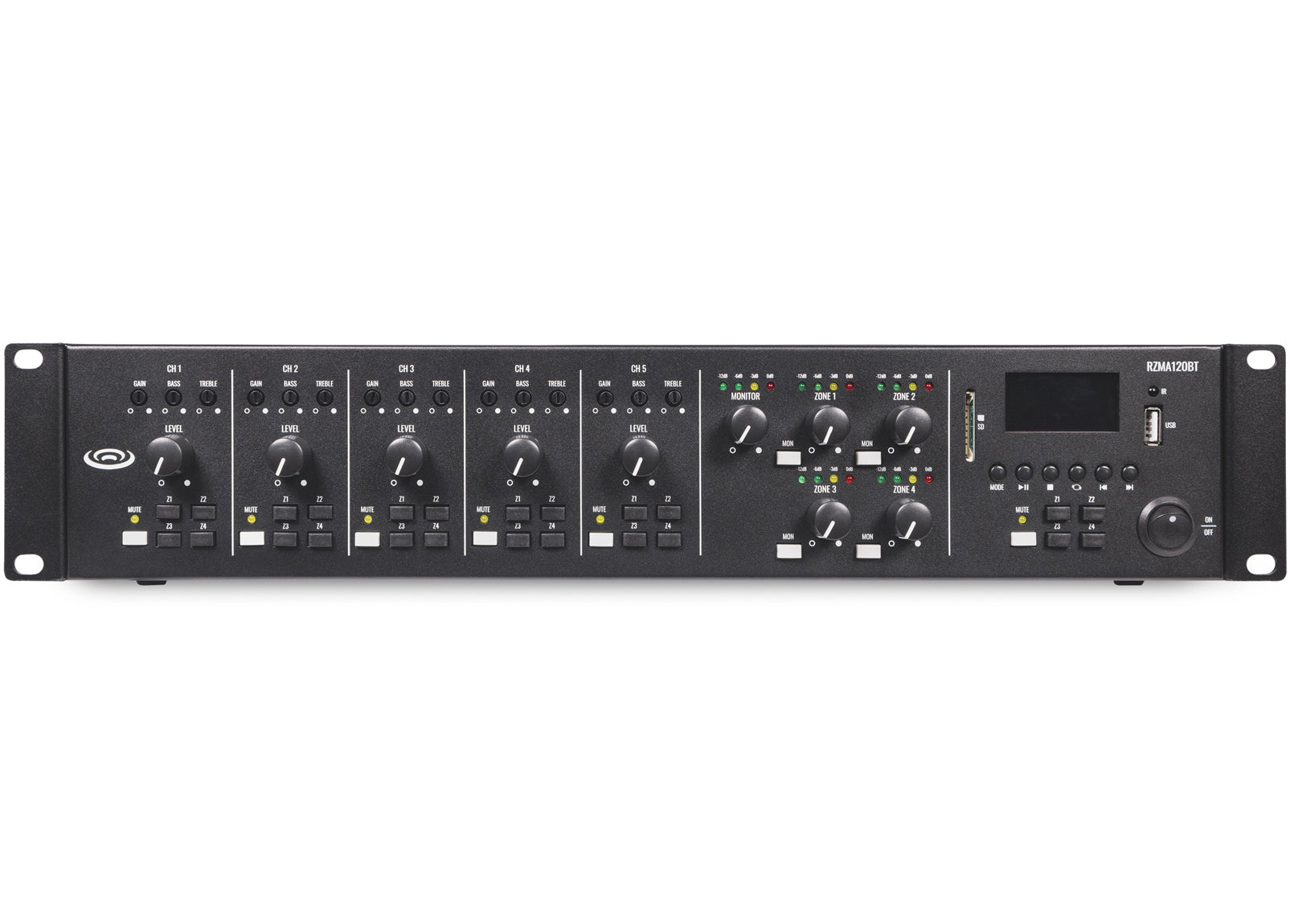

RZMA120BT 4-ZONE BLUETOOTH MIXER AMPLIFIER

The Pure Resonance Audio RZMA120BT is a powerful and feature-rich 4-zone mixer amplifier with Bluetooth, delivering 120 watts per zone across 4-16 ohm, 70V, and 100V outputs. Designed for versatility, it features advanced matrix technology, allowing up to 5 inputs to be assigned to any zone or multiple zones with a simple button press—no programming or tuning required. Built for multi-zone paging, music distribution, and room-combining applications, it offers separate bass, treble, and volume controls for precise adjustments in each zone. With built-in MP3, FM tuner, and recording capabilities, this rack-mount mixer amplifier seamlessly integrates into commercial audio setups, making it an excellent solution for businesses requiring flexible and efficient audio control.

Due to the possibilities of FM radio interference and the variables involved, it's not recommended to use FM radio as your primary input source.

PTT1 PUSH-TO-TALK GOOSENECK MICROPHONE

The Pure Resonance Audio PTT1 desktop push-to-talk microphone provides excellent performance and reliability, ideal for paging and announcements in your restaurant. The PTT1 features a uni-directional dynamic gooseneck microphone, table-stand, dual momentary locking switch, 5-foot cable, and three-pin male XLR connector. The durable gooseneck and metal table-stand ensure the PTT1 push-to-talk paging microphone can withstand daily use in tough environments.

Includes

(16) Pure Resonance Audio C5 Micro 4" 70 Volt Ceiling Mount Speakers
       (16) Pure Resonance Audio C5-TB Tile Bridge for C5 4" Ceiling Speakers
(1) Pure Resonance Audio RZMA120BT 4 Zone 120W Bluetooth Commercial Rack Mount Mixer Amplifier
       (1) IR Remote Control
       (1) Power Cord
(1) Pure Resonance Audio PTT1 Desktop Push-to-Talk Gooseneck Microphone
(500') 18/2 Gauge Speaker Wire

Specifications

C5 CEILING SPEAKER
RMS Power Rating 10 Watt
Frequency Response 90Hz - 20kHz
Low Frequency (-10 dB) 120Hz - 20kHz
Impedance 8 Ohms
Transformer Taps 2.5W, 5W, 10W @ 70V
5W, 10W, 20W @ 100V
8 Ohm Bypass
Transducer Full-range 4" driver
Nominal Coverage Angle 120° x 120°
180° Coverage Angle 84 dB ±3 dB
140° Coverage Angle 86 dB ±3 dB
Maximum SPL 104 dB ±3 dB
Cutout Size 6.25" (158.75 mm)
Easy-Mounting Ring (Dia) 7.46" (189.4 mm)
Mounting Depth 5.24" (132.84 mm) without connector
5.51" (139.83 mm) with connector
Overall Dimensions (Dia x D) 6.7" (170.2 mm) x 5.32" (135 mm) without connector
6.7" (170.2 mm) x 5.55" (141 mm) with connector
Weight 2.93 lbs (1.33 kg)
RZMA120BT MULTI ZONE MIXER AMPLIFIER
Rated Power Output 4 Zone channels x 120W (480W total)
Speaker Outputs 4Ω, 70V/100V
Input Sensitivity and Impedance CH1, CH2, CH3: MIC: ± 2.5mV/600 Ω
PHANTOM: ± 2.5mV
LINE: ~175mV/10K Ω balance input
CH5~6: 350mV/10K Ω balance input
TEL: 350mV/10K Ω
REMOTE MIC: ± 387mV/10K Ω
Frequency 80 - 16 kHz
MP3 Support MP3 format, max capacity of 32GB
TF File System Only FAT16, FAT32, the biggest one partition, does not support folder to store
Power Consumption 800W
Dimensions 5.20" (132 mm) x 19" (483 mm) x 17.32" (440 mm)
Weight 41.2 lbs (18.69 kg)
PTT1 PAGING MICROPHONE
Polar Pattern Uni-directional
Frequency Response 80Hz - 12kHz
Impedance 600Ω ± 30%
Sensitivity -72 dB ±3 dB
Connector 3-pin male XLR
Housing Die-Cast Zinc
Cable 1.5M (approx. 5')
Weight 1.87 lbs (0.85 kg)

Downloads

C5 Ceiling Speakers:

Manual

Cut Sheet


RZMA120BT Mixer Amplifier:

Manual

Cut Sheet


PTT1 Paging Microphone:

Manual
